TB6600 9-42V 4A CNC Stepper Motor Driver

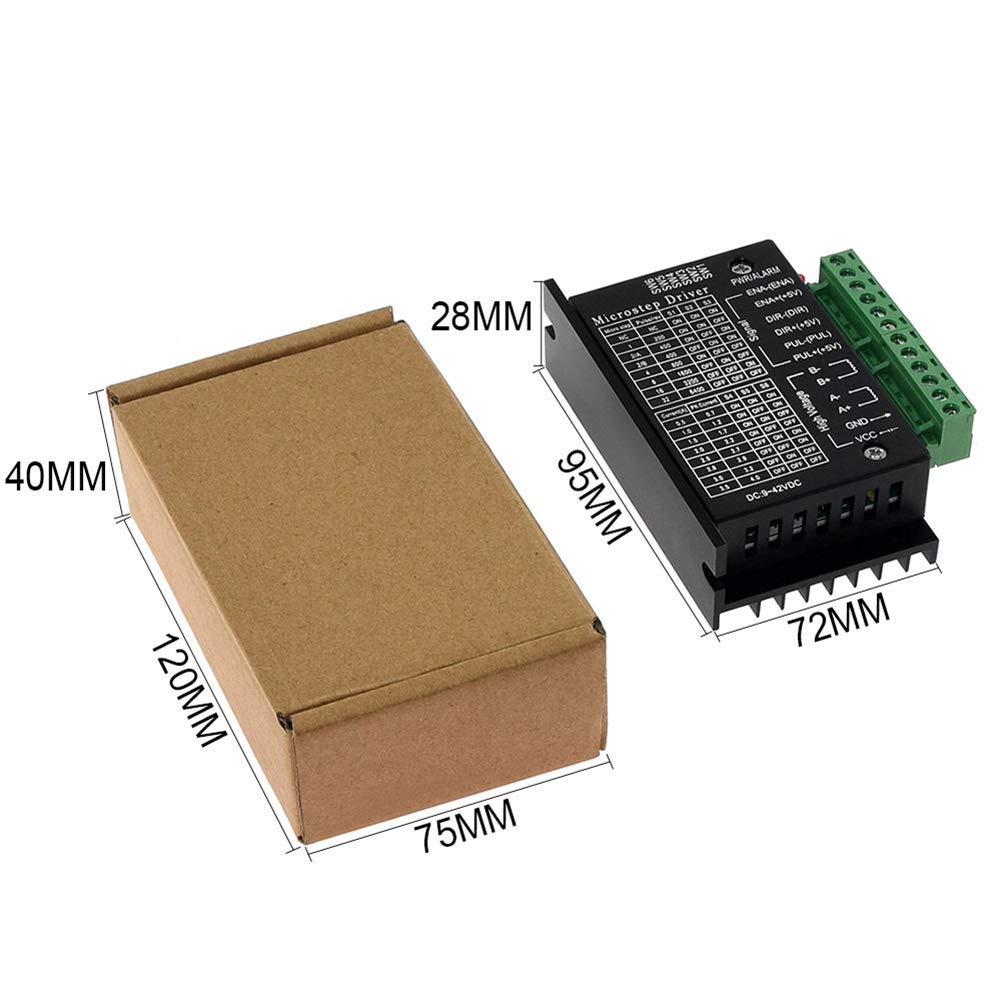

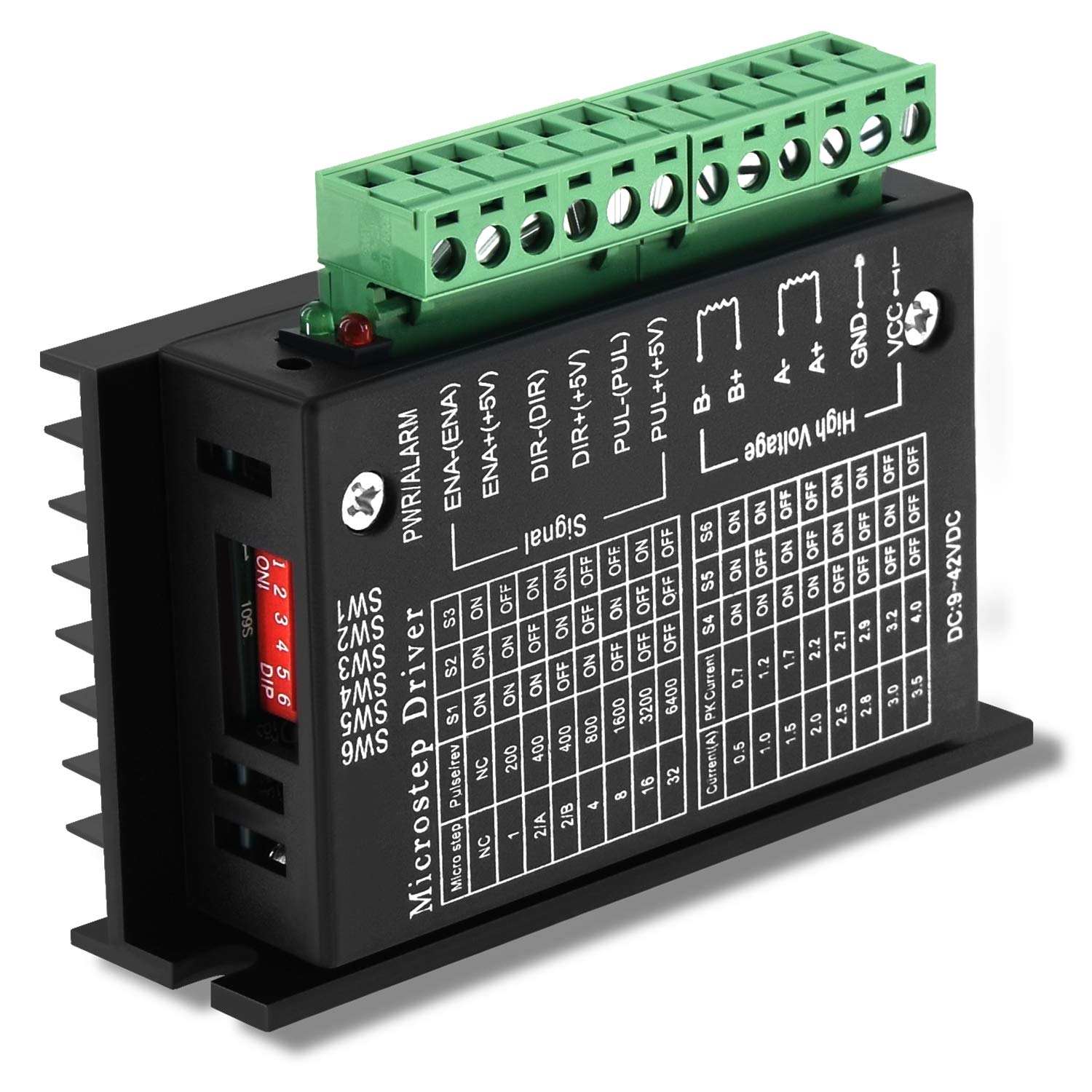

The TB6600 4A Stepper Motor Driver is a robust and adjustable driver module designed to control high-power stepper motors. It’s commonly used in CNC, robotics, and other industrial applications requiring precise control of stepper motors. This particular version comes in a black, DIN-rail mountable enclosure, which makes it ideal for clean, organized installations in control panels. The module features DIP switches for easy adjustment of microsteps and current, providing flexibility for various motor configurations.

Key Specifications for TB6600 Stepper Motor Driver

General Specifications

1. Driver IC: TB6600
2. Input Voltage Range: 9V to 42V DC, suitable for a wide range of motor power supplies
3. Output Current: Adjustable up to 4A per phase, supporting high-torque motors
4. Mounting Style: DIN-rail mountable black enclosure for secure, panel-based setups
5. Microstepping Control: Configurable via DIP switches for various step resolutions

Electrical Characteristics

1. Voltage Supply (V_IN): Wide voltage range (9-42V) for flexibility in motor selection and power options
2. Adjustable Current Limit: Allows setting the output current to prevent motor overheating and increase efficiency
3. Microstepping Options: Full, half, 1/4, 1/8, 1/16, 1/32 microsteps
4. Input Control Voltage: 5V logic compatible, suitable for integration with most microcontrollers and motion controllers

Performance Characteristics

1. Smooth Microstepping: Microstepping options provide fine motor control for smoother and quieter operation
2. DIP Switches: Easy-to-use DIP switches allow for quick adjustments of current and microstep settings without reprogramming
3. Overload and Overheat Protection: Integrated protection features prevent damage in case of excessive current or high temperatures

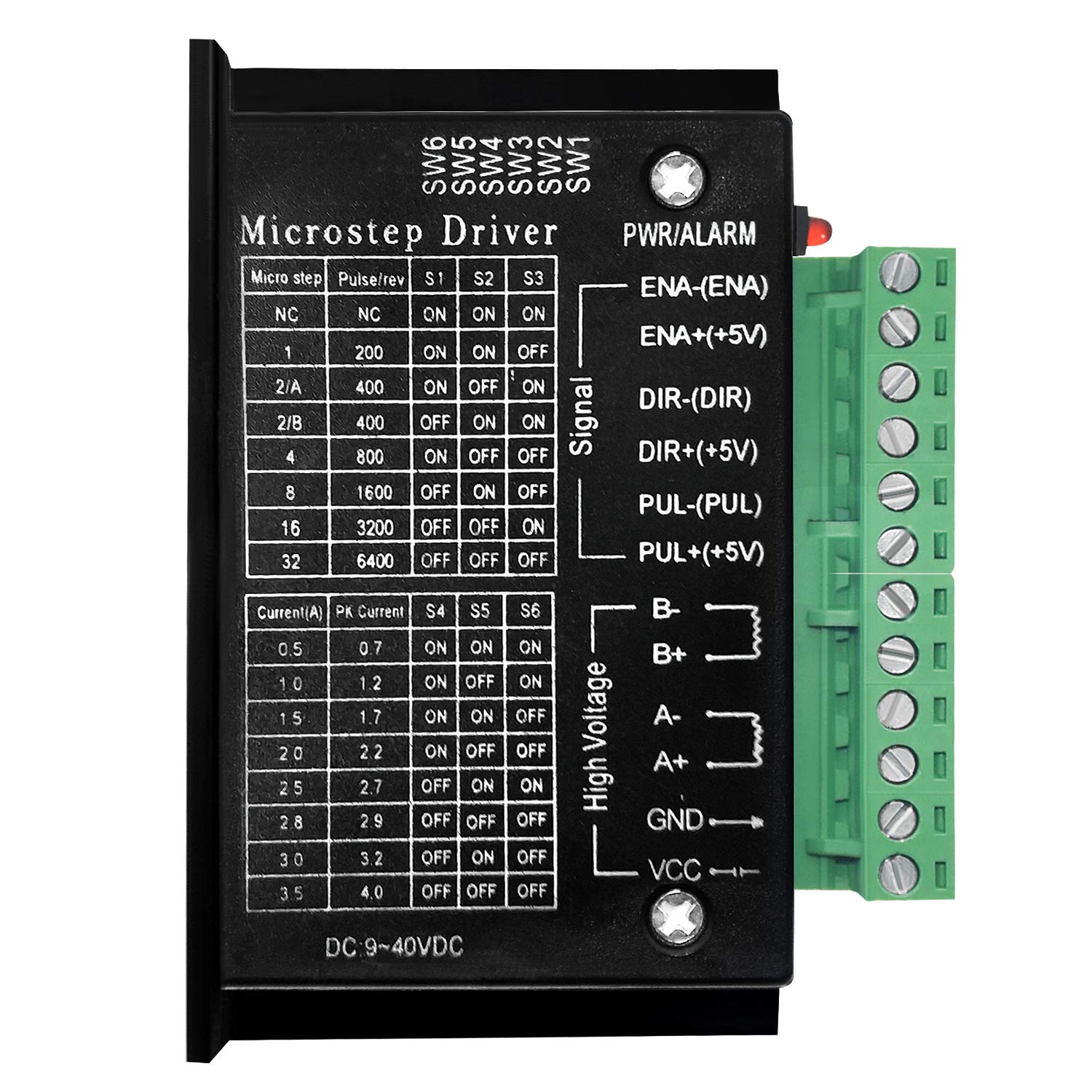

Control Interface

1. Input Pins:
2. EN (Enable): Activates or deactivates the driver
3. DIR (Direction): Controls motor rotation direction
4. PUL (Pulse): Receives step pulses to drive the motor

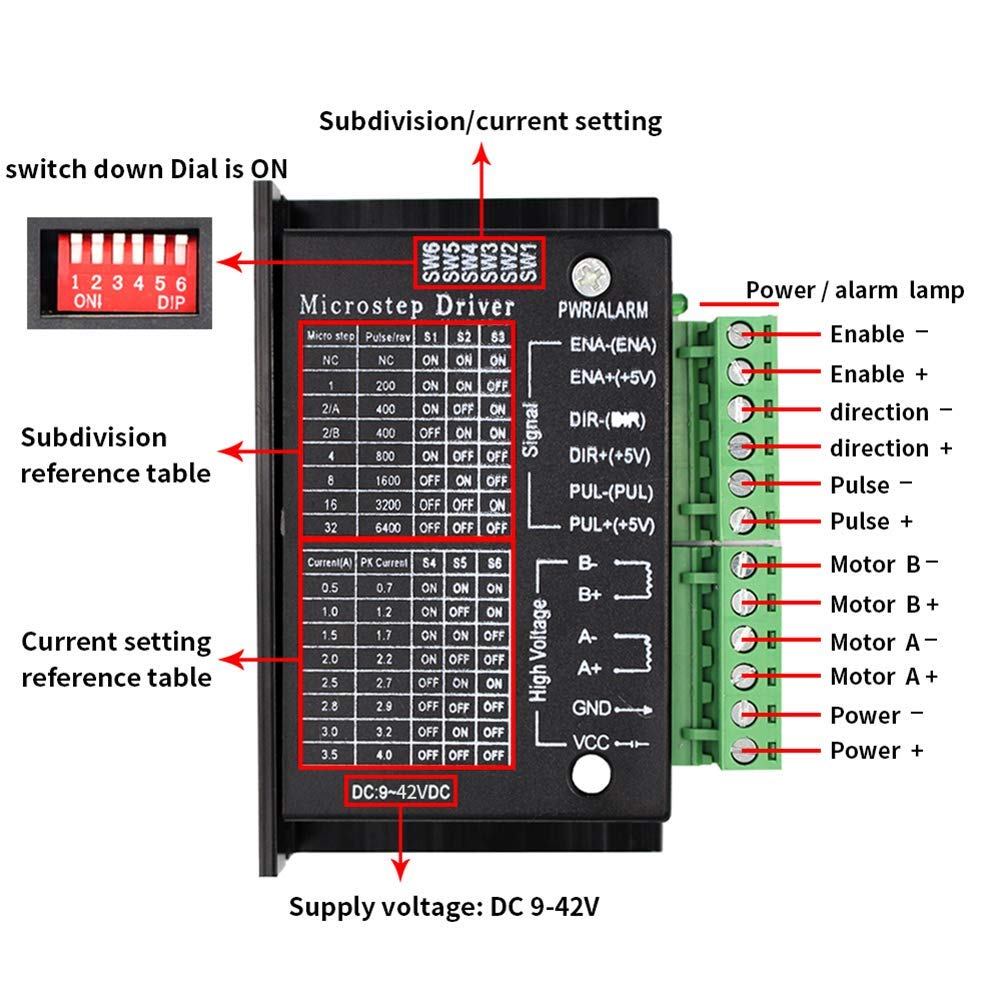

5. DIP Switches: Used for setting microstep resolution and output current limit

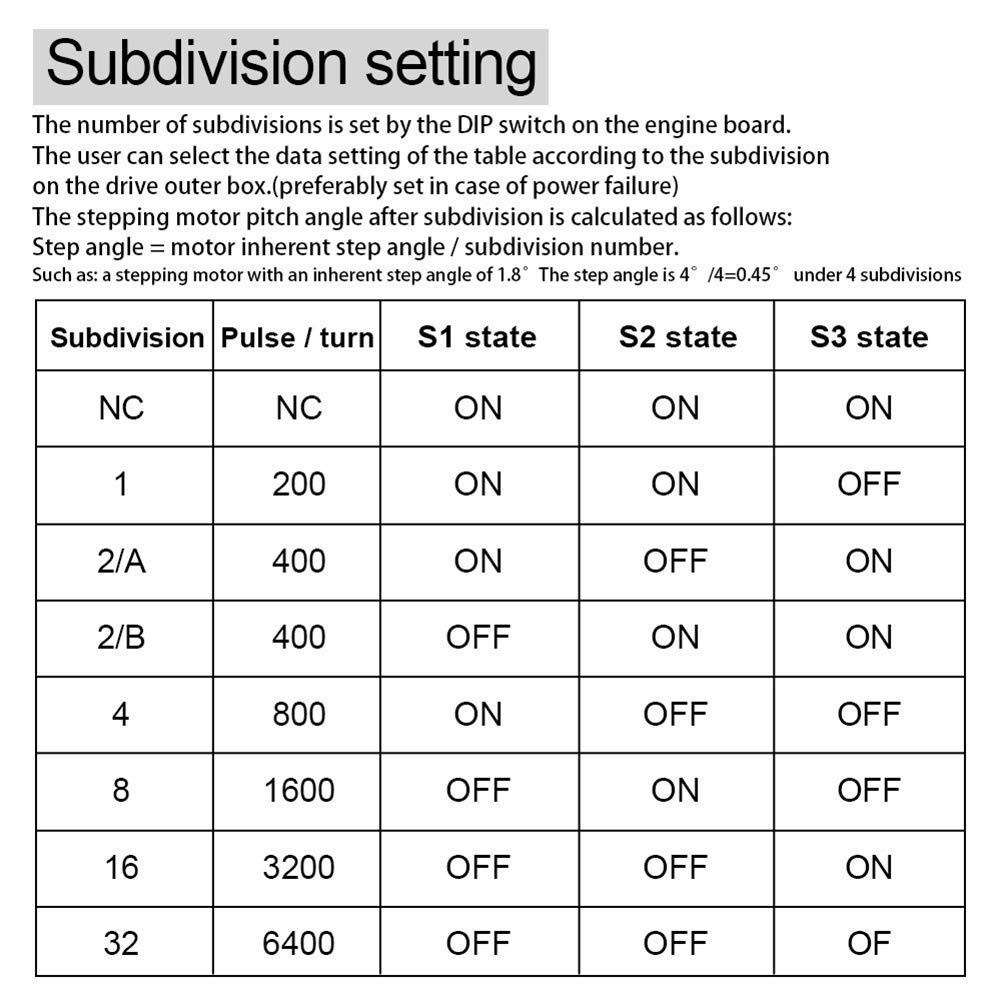

DIP Switch Configuration

1. Microstep Selection: Allows selecting from full-step to 1/32 microstepping via DIP switches for precise control of motion
2. Current Limiting: Adjustable to match the motor’s rated current, preventing overheating and optimizing performance

Key Features

1. DIN-Rail Mountable: Enclosed in a compact, black housing with DIN-rail compatibility for organized installation in control panels
2. Adjustable Microstepping and Current: DIP switches allow users to adjust microstepping and current without needing complex programming
3. Integrated Protection Circuits: Short-circuit, overheat, and overcurrent protections for safe and reliable operation
4. High Torque Output: Capable of driving large, high-torque stepper motors with precision

Applications

1. CNC Machines: Widely used in CNC applications for controlling machine axes, providing smooth motion and precise positioning
2. 3D Printing: Ideal for controlling extruder and bed motors in larger or industrial 3D printers
3. Robotics: Useful in robotic arms, mobile robots, and other applications requiring controlled movement
4. Automation Systems: Integrates easily into industrial automation setups for process control and material handling

Operation

The TB6600 Stepper Motor Driver operates by receiving step pulses (PUL) from a motion controller or microcontroller, which then drives the motor to move incrementally. The direction input (DIR) sets the motor rotation direction, and the enable input (EN) activates or deactivates the motor. Adjusting the microsteps and current limit through DIP switches allows easy tuning for different motor and application needs.

Overall, the TB6600 4A DIN-rail Stepper Motor Driver provides a reliable and flexible solution for industrial applications where precise motor control and convenient installation are essential.
