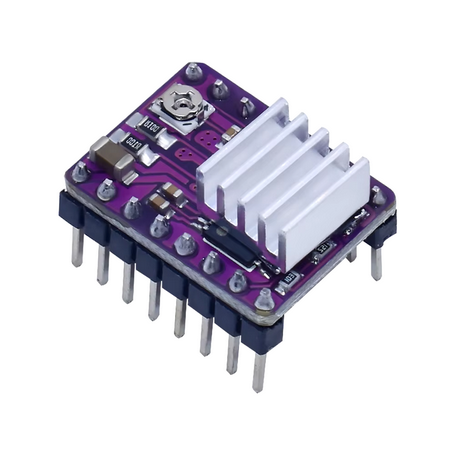

DVR8825 Step Stick

The DVR8825 is a highly integrated, microstepping driver for bipolar stepper motors. It is designed to control stepper motors with high efficiency and low heat generation, making it suitable for various applications, including 3D printers, CNC machines, and robotics. The DVR8825 offers a range of features that enhance motor control and simplify the design of stepper motor drivers.

Key Specifications for DVR8825 Stepper Motor Driver

General Specifications

1. Type: Bipolar stepper motor driver
2. Control Method: Microstepping (supports full, half, quarter, eighth, and sixteenth stepping)
3. Input Voltage Range: 8.2 V to 45 V
4. Output Current: Adjustable up to 2.5 A per phase (with sufficient cooling)
5. Package Type: Typically available in a compact 16-pin TSSOP package or on a breakout board

Electrical Characteristics

1. Operating Voltage: Supports a wide range of supply voltages, from 8.2 V to 45 V, allowing for flexibility in motor selection
2. Current Control: Integrated current control allows for setting the maximum current, ensuring the motor operates within safe limits
3. Thermal Shutdown: Built-in thermal protection to prevent damage from overheating
4. Short-Circuit Protection: Provides safety in the event of a short circuit in the motor or wiring

Performance Characteristics

1. Microstepping: Allows for smooth motion and precise control of the stepper motor by dividing each full step into smaller microsteps
2. Adjustable Current Control: The output current can be set via an external potentiometer, enabling easy tuning for different motors
3. Low Noise Operation: Generates less noise during operation compared to traditional drivers due to microstepping capability

Pin Configuration

1. VMOT: Motor power supply voltage input
2. GND: Ground connection
3. VREF: Reference voltage for setting the output current
4. DIR: Direction control input
5. STEP: Step control input (pulses to drive the motor)
6. SLEEP: Sleep mode control (can put the driver into low-power mode)
7. RESET: Resets the driver, returning it to normal operation
8. FAULT: Fault output indicator (indicates if a fault condition occurs)
9. M0, M1, M2: Microstepping configuration inputs (set the microstepping mode)
10. A1, A2: Motor coil A connections
11. B1, B2: Motor coil B connections

Key Features

1. Microstepping Capability: Provides finer control of motor movement, resulting in smoother motion and reduced vibrations
2. Compact Design: Easy to integrate into various projects with minimal space requirements
3. Adjustable Current Limit: Allows for efficient use of power and heat management
4. Protection Features: Integrated thermal and short-circuit protection for reliability

Applications

1. 3D Printers: Widely used to drive stepper motors in additive manufacturing machines
2. CNC Machines: Ideal for controlling the movement of tools and workpieces in CNC applications
3. Robotics: Used in robotic arms and mobile robots for precise control of movement
4. Automated Systems: Suitable for various automation tasks requiring stepper motor control

The DVR8825 stepper motor driver is a reliable and versatile solution for controlling bipolar stepper motors in various applications. Its combination of microstepping capabilities, adjustable current control, and protective features make it a popular choice among hobbyists and professionals alike.
