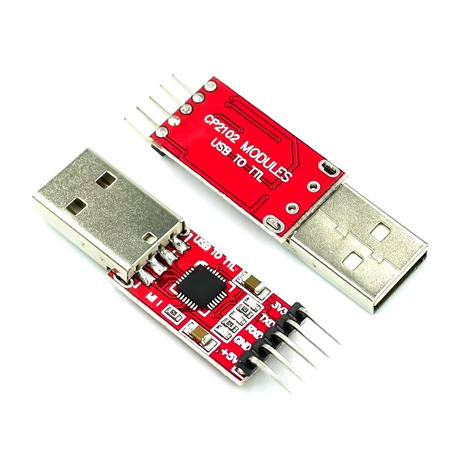

CP2102 Module USB to TTL serial UART

he CP2102 USB to TTL Serial UART Module is a USB-to-serial converter commonly used to interface USB-equipped computers with TTL-level serial devices like ESP8266, ESP32, Arduino, and other microcontrollers. It provides an easy way to connect these devices to a computer for programming, debugging, and serial communication.

Key Specifications for CP2102 USB to TTL Module

General Specifications

1. Type: USB to TTL Serial Converter
2. IC: CP2102 (Silicon Labs)
3. USB Interface: USB 2.0 (Full-Speed)
4. Serial Data Levels: 3.3V TTL (ideal for ESP8266, ESP32), with some models supporting 5V compatibility

Electrical Characteristics

1. Input Voltage: 5V from USB (some modules can also supply 3.3V output)
2. Output Voltage Options:
3. 3.3V Output: Typically provided for low-power devices
4. 5V Output: Available on some modules, usable for devices requiring a 5V supply
5. Baud Rate: Up to 921,600 bps (supports standard rates like 9600, 115200, etc.)

Performance Characteristics

1. LED Indicators: RX and TX LEDs for monitoring data transmission and reception
2. Onboard Voltage Regulator: Provides 3.3V output to power low-voltage devices, including ESP modules
3. Self-Powered via USB: Draws power from USB port, requiring no external power supply for operation

Pin Configuration

1. VCC (3.3V or 5V): Provides power to external devices, depending on module configuration
2. GND: Ground
3. TXD: Transmit data line (connects to RX of the device being programmed)
4. RXD: Receive data line (connects to TX of the device being programmed)
5. DTR (optional): Used for automatic reset in some modules (may be used with ESP devices for auto-programming)

Key Features

1. Wide Compatibility: Works with various operating systems including Windows, MacOS, and Linux
2. USB Plug-and-Play: Simple installation with Silicon Labs drivers, making it beginner-friendly
3. Compact Size: Easy to connect to prototyping boards and breadboards
4. Reliable and Stable Connection: Silicon Labs CP2102 chip offers stable UART communication with minimal packet loss

Applications

1. Programming ESP8266/ESP32 Modules: Used to upload code to Wi-Fi-enabled microcontrollers
2. Debugging Microcontroller Projects: Enables serial communication for debugging and monitoring
3. TTL to USB Communication: Connects embedded systems to computers for data logging or control
4. General Serial Communication: Interface for other serial devices needing a USB connection, such as Arduino, STM32, and GPS modules

The CP2102 USB to TTL Serial Module is a popular choice for projects requiring reliable and easy-to-use USB-to-serial connectivity, particularly for programming and debugging ESP-based microcontrollers. Its compact form and compatibility with 3.3V logic make it especially suited to low-power, Wi-Fi-based IoT applications.
